US Army Water Canteen NBC Caps
Plastic Canteen M1 Cap

The M17 Protective Mask is a series of gas masks that were designed and produced in 1959 (as a replacement of the M-9 gas mask) to provide protection from all types of knownchemical and biological agents present.The M-17 was issued to troops in the Vietnam war, and was standard issue for the U.S Army until it was replaced by the M-40 in the late 1980s and early 1990s

These protective masks have inbuilt systems that facilitate communication, a tube for drinking water (A1 / A2), and a pair of outserts to protect eye lenses and prevent fogging. M17 - first .M17A1 - added drinking tube to consume water while wearing.
M17A2 - a smaller size was introduced, so they changed the name. that is the only difference. current issue. The drinking tube was added to the M17A1 in 1966. the name was changed to M17A2 in 1983. The drinking tube was around long before the A2 was.

In 1966 the M-17A1 protective mask was introduced, which had an integral drinking tube. The cap of the M1961 canteen was changed to an NBC cap by the addition of a small connecting hole in the center of the cap with a cover that snapped into place. Replacement NBC caps, called the M1 cap, were issued for older canteens then in use, first in black then olive green.

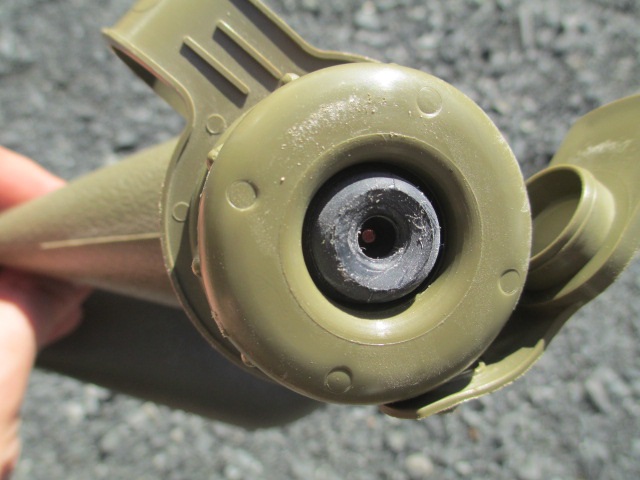

Army Mil-Spec NBC Cap with valve system for hydration while wearing military Gas masks. Made of Polypropylene, rubber and stainless steel material, the cap enables a user to drink from a standard military canteen while wearing PPE. Fits GI 1 and 2-quart and NATO standard 28mm thread military canteens. Adapter has a pressure valve fitting gasket, cover, and a coupling with a self-sealing valve. Receives the drinking hose from any NATO standard military gas mask like the M17A1, MSA Millenium, M-40 and MCU-2P. Dimensions: cap: 1.85" diameter. Cap height: 1.36", Snap height: 2 5/8" (inches). NBC is an acronym for Nuclear, Biological and Chemical. MIL-C-51278D. Olive Drab. NSN : 8465-00-930-2077



Further Information






Cell Description NSN


Cell

Canteen, Water 1.0 quarts
Rigid, single wall construction,
W/strap on screw cap, W/O cup and cover
Olive Drab
(w/ plain cap - obsolete)
8465-00-889-3744
January 01, 1963
Cap, Water Canteen M-1,Black 8465-00-930-2077
April 29, 1966
M-1Cap 2nd Type ,Olive 1980
M-1Cap 3rd Type
Cap, Water Canteen, M1,
Olive Drab
8465-00-930-2077

Cap, Water Canteen
Avon Protection System Inc
8465-01-529-9800


Canteen Strap 8465-01-082-6449

Canteen Cap 4240-00-930-2070
